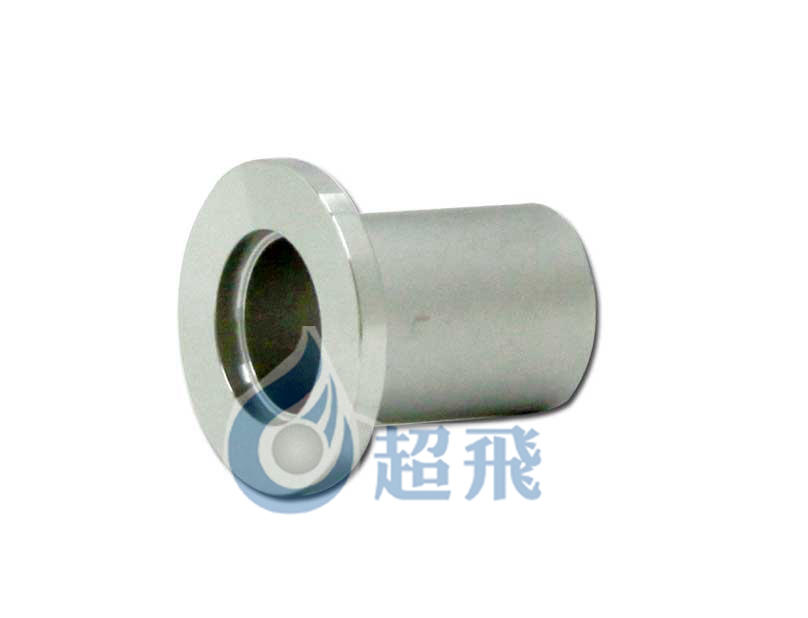

KF 半短管
KF HALF NIPPLES
材質(zhì)：不銹鋼304/L
Catalogue PN
Size
Diagram
A
B
C
D
E
KF-HN-10
KF 10-1.25”
A
30.00
12.20
9.40
12.70
31.75
KF-HN-16
KF 16-1.15”
A
30.00
17.20
15.80
19.10
29.21
KF-HN-16-1
KF 16-1.50”
A
30.00
17.20
15.80
19.10
38.10
KF-HN-25
KF 25-2.03”
B
40.00
26.20
22.10
25.40
51.56
KF-HN-25-1
KF 25-2.04”
A
40.00
26.20
22.10
25.40
51.80
KF-HN-40
KF40-2.40”
B
55.00
41.20
34.80
38.10
60.96
KF-HN-40-1
KF40-2.46”
B
55.00
41.20
34.80
38.10
62.50
KF-HN-50
KF50-3.15”
B
75.00
52.20
47.50
50.80
80.01
KF-HN-50-1
KF50-3.21”
B
75.00
52.20
47.50
50.80
81.50
KF 半短管
